Cuda Front Load Aqueous Parts Washers
Cuda Parts Washers – Faster Safer
Cleaning grimy parts is a time consuming process that used to require dealing with hazardous solvent chemicals. Having high paid mechanics or technicians scrubbing parts costs you a lot of money.
Environmentally Smart – Highly Effective – Totally Automatic
Instead of using hazardous solvents with potential health risks and the added cost of safe disposal (and potential liability for improper handling), Cuda Parts Washers use water and specialized detergents with rust inhibitors. The washer uses an an automatic high pressure spray system, rotating tray, and temperatures near boiling to quickly and thoroughly remove grime and dirt.
Free oils are skimmed to prolong the life of the wash water and debris gets filtered by an easy to clean screen.
The Right Size for Your Job
Cuda Parts Washers come in Top Loading and Front Loading configurations and load capacities from 250 pounds all the way up to 5000 pounds. Our turntables run from 22 inches in diameter up to 48 inches with working heights from 12 inches up to 60 inches!
CONTACT US
Let the experts at Master Burn help you decide which Cuda Parts Washer is right for you
Call Master Burn at 605-543-5817
Cuda Top Load Aqueous Parts Washers
Cuda top load parts washers are the right choice for most shops. Parts are placed on a turntable that rotates while being blasted with a high temperature, high pressure water and soap spray. After 15-20 minutes of automatic cleaning, parts come out looking like new again.
There are 4 Series of Cuda Top Load parts washers, each series has a variety of models and options so Master Burn can create the perfect washer for your shop.
Cuda Top Load Parts Washer Models
| Series | Load Capacity | Turntable Diameter | Working Height | GPM | PSI |
| 2216 | 500 lbs. | 22 in. | 16 in. | 28 GPM | 30 PSI |
| 2412 | 250 lbs. | 24 in. | 12in | 20 GPM | 22 PSI |
| 2518 | 500 lbs. | 25 in. | 18 in. | 50 GPM | 45 PSI |
The Cuda SJ-15 Basket System is Different
The Cuda SJ-15 uses a stationary basket system with rotating spray nozzles. With a total of 23 spray nozzles, the rotating spray arm is never further than 18 inches away from the load and creates a unique surround cleaning effect.
| Series | Load Capacity | Basket Length x Width | Working Height | GPM | PSI |
|---|---|---|---|---|---|
| SJ-15 | 350 lbs. | 32 in. x 21 in. | 21 in. | 37 GPM | 30 PSI |

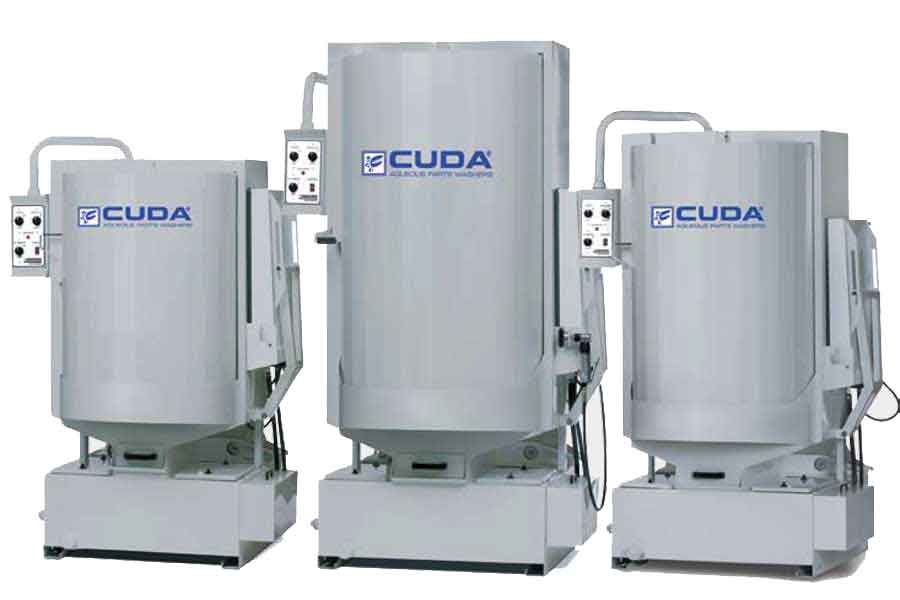

Cuda Front Load Aqueous Parts Washers
Cuda builds front load parts washers because, for larger objects, it’s sometimes harder to lift them up and over the side of a top load unit. The front loaders are the big workhorses of parts washing, able to take up to 5,000 pounds of parts with space for objects up to 4 feet in diameter and 5 feet tall in one wash.
Cuda Front Load Parts Washer Models:
| Series | Load Capacity | Turntable Diameter | Working Height | GPM | PSI |
|---|---|---|---|---|---|
| 2530 | 500 lbs. | 25 in. | 30 in. | 50 GPM | 45 PSI |
| 2840 | 750 lbs. | 28 in. | 40 in. | 50 GPM | 45 PSI |
| 2848 | 750 lbs. | 28 in. | 48 in. | 110 GPM | 50 PSI |
| 4860 | 5000 lbs. | 48 in. | 60 in. | 200 GPM | 50 PSI |
Each series offers a variety of sub-models and options that allow Master Burn to tailor a unit to your specific needs.
